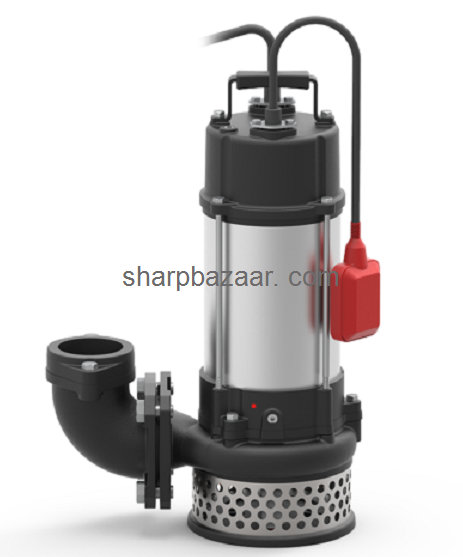

The Lubi LAP-2135 1HP 3 Phase Drainage Pump with Float is a submersible drainage pump designed for water removal and dewatering applications. It is powered by a 1HP motor and operates on a 3 Phase electrical supply.
The pump features a 2-inch pipe connection and is supplied with a float switch, making it suitable for applications where automatic pump operation based on water level is required.

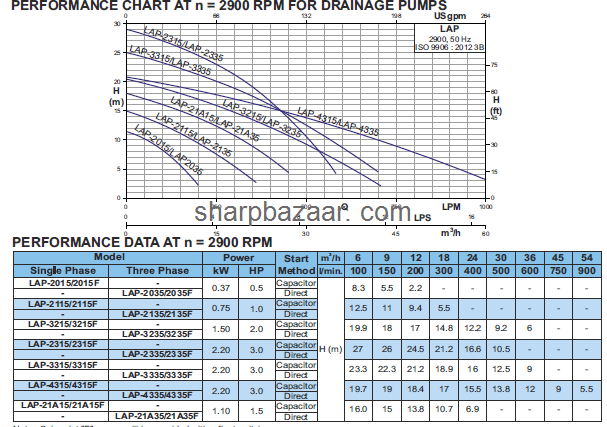

Based on the supplied performance data, the LAP-2135 provides 13 metres of head at 100 LPM, 11 metres at 150 LPM, and 6 metres at 300 LPM.
| Specification | Details | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Brand / Make | Lubi | ||||||||
| Model | LAP-2135 | ||||||||
| Pump Type | Drainage Submersible Pump | ||||||||
| Power | 1 HP | ||||||||
| Power in kW | 0.75 kW | ||||||||
| Phase | 3 Phase | ||||||||
| Pipe Size | 2 Inch | ||||||||
| Float Switch | Yes | ||||||||
| Speed | 2900 RPM | ||||||||
| Frequency | 50 Hz | ||||||||
| Starting Method | Direct Start | ||||||||
| Performance Standard | ISO 9906:2012 Grade 3B
|
Lubi LAP-2135F is a 1HP, 3 Phase drainage submersible pump with a float switch.
The pump has a 1HP / 0.75 kW motor.
It is a 3 Phase pump.
The pump has a 2-inch pipe size.
Yes. Lubi's catalogue states that pumps with the “F” suffix are provided with a float switch.
The supplied performance data gives 13 metres at 100 LPM.
The supplied performance data gives 11 metres at 150 LPM.
The supplied performance data gives 6 metres at 300 LPM.
LAP-2135F includes a float switch, while the standard LAP-2135 is the non-float version.
