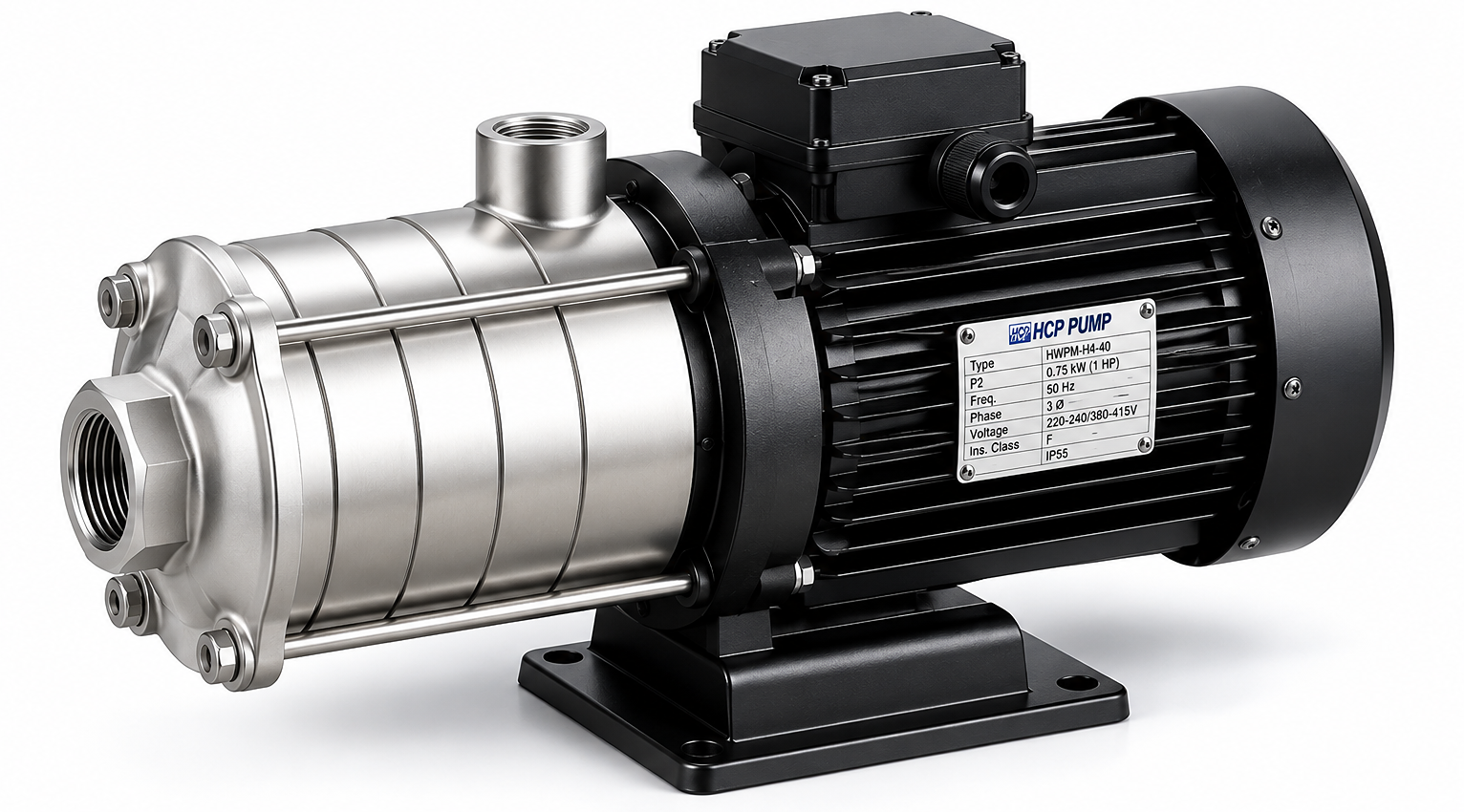

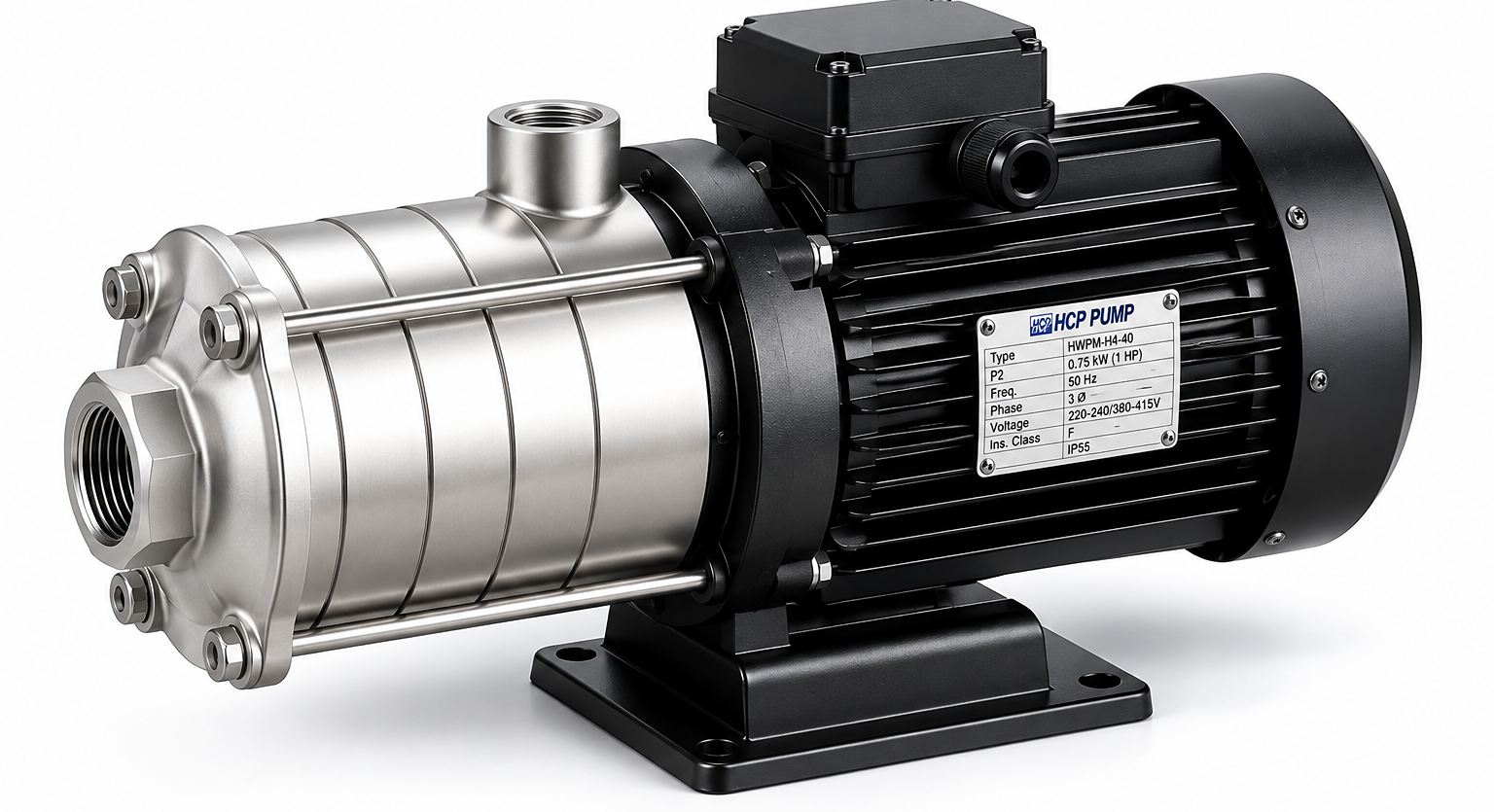

The HCP HWPM-H4-40 is a 1 HP (0.75 kW) horizontal multistage centrifugal pump available in single-phase and three-phase configurations. It belongs to the HCP HWPM-H series, which is designed as a compact and stable non-self-priming horizontal multistage centrifugal pump. HCP_HWPM-H_Horizontal Multistag…
The HWPM series uses a multistage centrifugal design with impellers and diffusers arranged for efficient water movement and pressure generation. Its pull-back construction, axial-thread inlet and radial-thread outlet provide a practical configuration for installation and servicing. HCP_HWPM-H_Horizontal Multistag…
The HWPM-H4-40 performance table covers flow rates from 1 to 7 m³/h, with the H4-40 model providing approximately 31 m head at 4 m³/h according to the catalogue performance data.
Key Features :
| Feature | Specification |
|---|---|
| Model | HWPM-H4-40 |
| Power | 1 HP / 0.75 kW |
| Phase | 1 Phase / 3 Phase |
| Pump Type | Horizontal Multistage Centrifugal Pump |
| Frequency | 50 Hz |
| Motor Type | Totally Enclosed, Fan-Cooled, 2-Pole Motor |
| Motor Protection | IP55 |
| Insulation Class | Class F |
| Pump Design | Non-Self-Priming |
| Performance Range Shown | 1–7 m³/h |
| Head at 4 m³/h | Approximately 31 m |
| Applications | Water Supply, Water Pressurization, Irrigation, Water Treatment and Industrial Applications |
