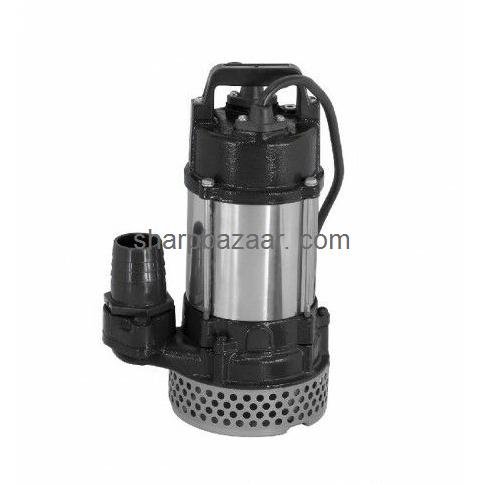

The Lubi LAP-2135 1HP 3 Phase Dewatering Submersible Pump is designed for efficient water drainage and dewatering applications. With a 1HP (0.75 kW) three-phase motor, this submersible drainage pump is suitable for applications where reliable water removal is required.
The pump operates at 2900 RPM on a 50 Hz power supply and uses a direct starting method. The LAP-2135 is supplied as a non-float model, while the LAP-2135F variant is available with a float switch for automatic water-level operation.

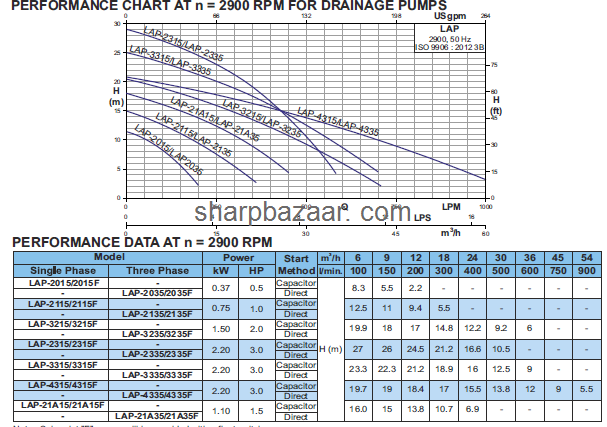

Featuring a 2-inch (50 mm) discharge outlet, the Lubi LAP-2135 is designed for efficient drainage performance. According to the performance information available in the Lubi catalogue, the LAP-2115 and LAP-2135 models are shown with the same performance curve, including approximately 100 LPM at 12.5 metres head, 150 LPM at 11 metres, 200 LPM at 9.4 metres, and 300 LPM at 5.5 metres.
The Lubi LAP-2135 drainage submersible pump is suitable for water drainage, dewatering and general drainage applications where a 3-phase submersible pump is required. Its compact submersible design allows the pump to operate directly in the water, making it useful for removing accumulated water from drainage areas and other water-handling applications.
The pump is listed under the Lubi LAP Drainage Pump Series and follows ISO 9906:2012 Grade 3B performance standards.
Detailed Specifications
| Specification | Details |
| Brand | Lubi |
| Model | LAP-2135 |
| Series | LAP Drainage Pumps |
| Pump Type | Dewatering / Drainage Submersible Pump |
| Power | 1 HP (0.75 kW) |
| Phase | 3 Phase |
| Frequency | 50 Hz |
| Rated Speed | 2900 RPM |
| Discharge Size | 50 mm (2 Inch) |
| Float Switch | Without Float |
| Performance Standard | ISO 9906:2012 Grade 3B |
Performance Data
| Flow Rate | Head |
| 100 LPM | 12.5 m |
| 150 LPM | 11 m |
| 200 LPM | 9.4 m |
| 300 LPM | 5.5 m |
