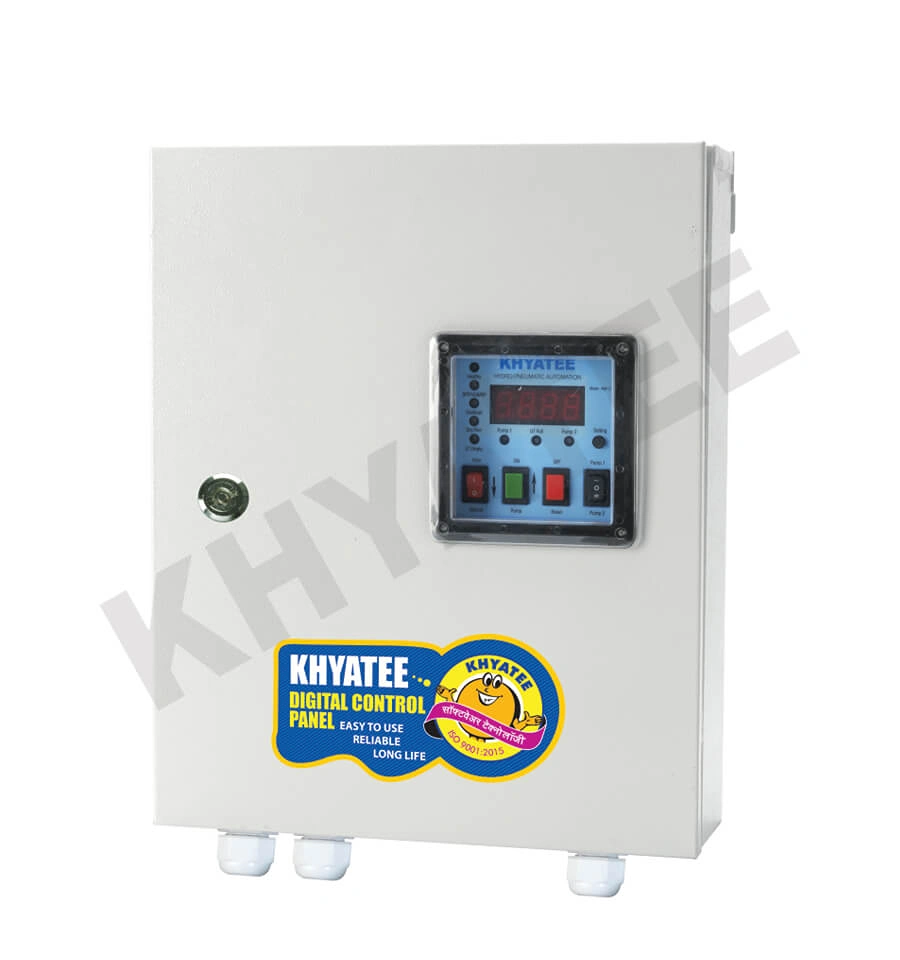

KHYATEE KDM DOL 225+ MCB 10HP 3P CONTROL PANEL

The KHYATEE KDM DOL 225+ MCB 10HP Three Phase Control Panel is designed to operate and protect three-phase pump motors. It features digital voltage and current displays, adjustable protection settings, and programmable timers for dependable motor control. The KHYATEE KDM DOL 225+ MCB 10HP Three Phase Control Panel is developed to provide reliable motor control and protection for three-phase pumping systems. Built using microcontroller-based software technology, it continuously monitors electrical conditions and motor performance to help maintain safe and efficient operation. The panel features digital voltage and current displays, allowing users to monitor system performance with ease. Multiple built-in protection functions help safeguard the motor against electrical faults such as phase failure, voltage imbalance, overload, dry running, and short circuits. Adjustable timer settings further improve operational flexibility, making the panel suitable for agricultural, commercial, and industrial water pumping systems.

1. Technology :

• Micro controller based software technology

2. Current Range / HP :

• 2 – 22 Amps. /  1 to 7.5 HP or as required.

3. Display :

• Digital Voltmeter (200 to 500 V)
• Digital Ammeter (1 – 30 Amps. or as required)

4. Protections :

• Phase Failure (Supply Side)
• Phase Failure (Motor Side)
• Reverse Phase (Supply Side)
• Voltage and Current Unbalance
• Electronic Overload (Site Settable 20 to 50 %)
• Remote sensing Dryrun (Site Settable 60 to 95 % – Byp.)
• High / Low Voltage (Site Settable)
• Extreme High Current (Short Circuit)

5. Timers :

• Motor OFF Timer OFF – 5 – 720 mins. (Site Settable)
• Power ON Timer 3 – 300 sec. (Site Settable)

5. Timers :

• Motor OFF Timer OFF – 5 – 720 mins. (Site Settable)
• Power ON Timer 3 – 300 sec. (Site Settable)
