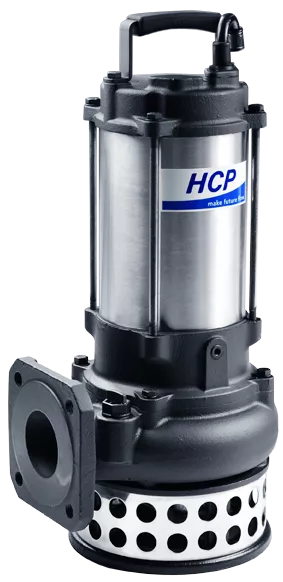

The HCP AN-31 is a 1HP, single-phase submersible dewatering pump designed for efficient water drainage in residential, fishpond, basement, cellar, and garden irrigation applications. It features a dry motor, vortex impeller, IP68 protection, and thermal auto-cut protection for reliable operation.

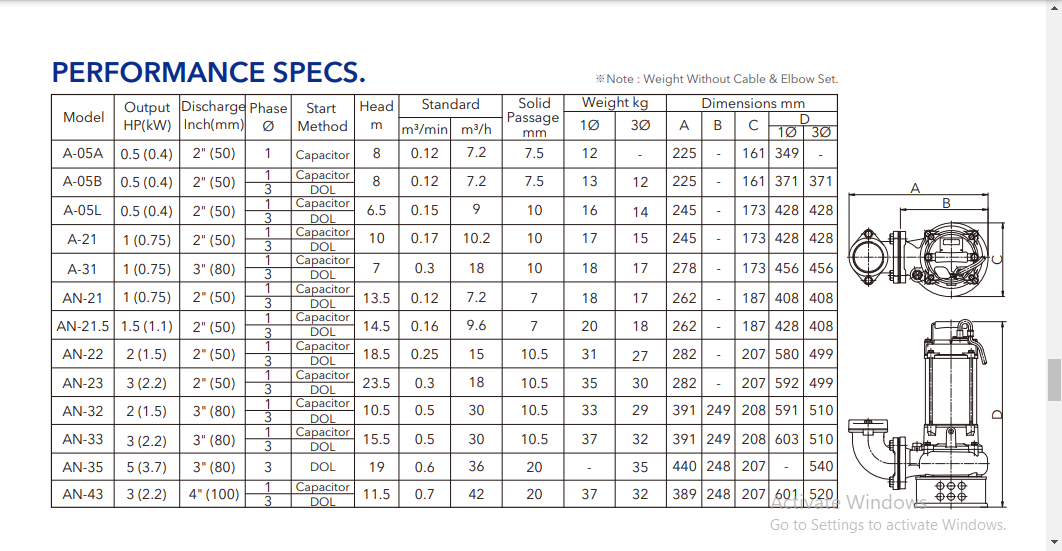

| Specification | Details |
|---|---|
| Brand | HCP |
| Model | AN-31 |
| Pump Type | Submersible Dewatering Pump |
| Motor Output | 1 HP (0.75 kW) |
| Phase | 1 Phase |
| Start Method | Capacitor |
| Discharge Size | 3 Inch (80 mm) |
| Head Range | 7 – 12 m |
| Flow Range | 0.30 – 0.55 m³/min |
| Maximum Solid Passage | 7 mm |
| Weight | 17 kg (1Ø) / 16 kg (3Ø) |
| Motor Type | Dry Motor |
| Protection | IP68 |
| Insulation | Class B |
| Impeller Type | Vortex |
| Liquid Temperature | 0°C to 40°C |
