VA Best 1HP/0.75KW/ 2Stage/S10322J/ 1P Jet Pump

₹16,000.00 ₹19,000.00

Quantity:

1
Product Details

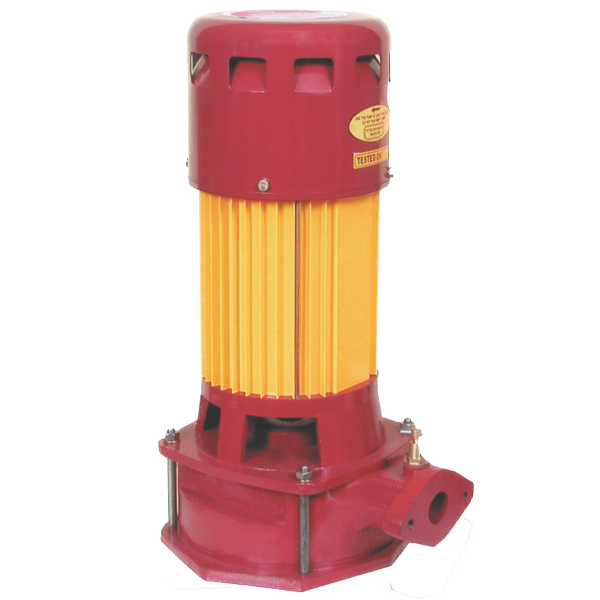

VA Best S10322J 1HP Centrifugal Deepwell Jet Pump

The VA Best S10322J 1HP Centrifugal Deepwell Jet Pump is designed to provide reliable and efficient water pumping performance for domestic, agricultural and small commercial applications. Powered by a 0.75 kW (1 HP) single-phase AC motor, this pump operates at 50 Hz with a speed of approximately 2800 RPM.

The pump features a capacitor start and run motor with TEFC/SPDP construction, designed for dependable operation. Its rotor assembly and impeller are dynamically balanced to ensure smooth running. The close-grained cast iron casing provides a sturdy construction, while the mechanical seal fitted over the shaft helps prevent water leakage.

The pump is equipped with high-quality capacitors for trouble-free operation. Its cast iron pressure regulator can be adjusted to help the pump operate efficiently at different pumping heads and deliver maximum flow. All control valves are tested for frictional losses, and hydrostatic testing is carried out to check for leakage.

The VA Best S10322J comes with standard accessories, including a pressure gauge, jet assembly and pressure regulating valve. It is suitable for domestic water supply, small farms, hotels, small industries, gardens and drinking water supply applications.

VA Best S10322J – 1 HP Jet Pump

1. Technical specifications

Specification

Catalogue details

Brand

VA Best (as provided by you)

Model

S10322J

Pump Type

Centrifugal Deepwell Jet Pump

Power

1 HP

Power (kW)

0.75 kW

Phase

Single Phase

Voltage

160–240 V

Frequency

50 Hz

Speed

2880 RPM

Pipe Size

32 × 25 × 25 mm

Maximum Current

6.5 Amps

Motor

TEFC/SPDP

Starting

Capacitor Start and Run

Standard

IS 12225

SUCTION-140FT

DELIVERY-60FT

Key Features

  • 1 HP (0.75 kW) motor

  • Single-phase AC operation

  • Capacitor start and run motor

  • Dynamically balanced rotor assembly and impeller

  • Close-grained cast iron casing

  • Mechanical shaft seal

  • Adjustable cast iron pressure regulator

  • High-quality capacitors

  • Tested control valves for reliable operation

  • Designed according to IS 12225 standard

Standard Accessories

  • Pressure Gauge

  • Jet Assembly

  • Pressure Regulating Valve

Applications

  • Domestic water supply

  • Small farms

  • Hotels

  • Small industries

  • Gardens

  • Drinking water supply

Operating Recommendations

  • Use quality pipes with ISI marking.

  • Follow the recommended pipe size.

  • Reduce the number of bends and elbows in the pipeline.

  • Avoid overloading the pump.

  • Maintain a minimum submergence of 1.5 metres for the jet unit.

  • Never operate the pump without water.

Warranty

The pump comes with a 12-month guarantee
