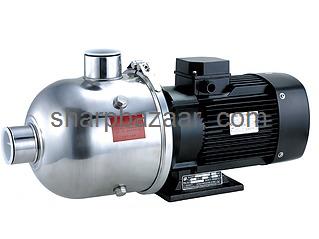

The CNP CHL 4-40 is part of the CHL horizontal multistage pump series. Its multistage design supports water transfer and pressure boosting applications. The horizontal construction allows installation in suitable pipeline and water supply systems.
The product configuration provided for this listing is 1HP / 0.75kW, single phase, SS316 stainless steel. Please verify these configuration details against the product nameplate or supplier documentation before publishing.
key features:
Specification | data |
|---|---|
Model | CHL4-40 |
Motor power | 0.75 kW / 1 HP |
Frequency | 50 Hz |
Motor phase | Three-phase / single-phase listed in the shared size-and-weight table |
Head at listed flow points | 38, 36, 32, 30, 26, 20, 14 m |
Overall length (L1) | 445 mm |
Dimension D | 170 mm |
Dimension H | 225/245 mm |
Dimension K | /100 as printed |
Weight | 15 kg |
