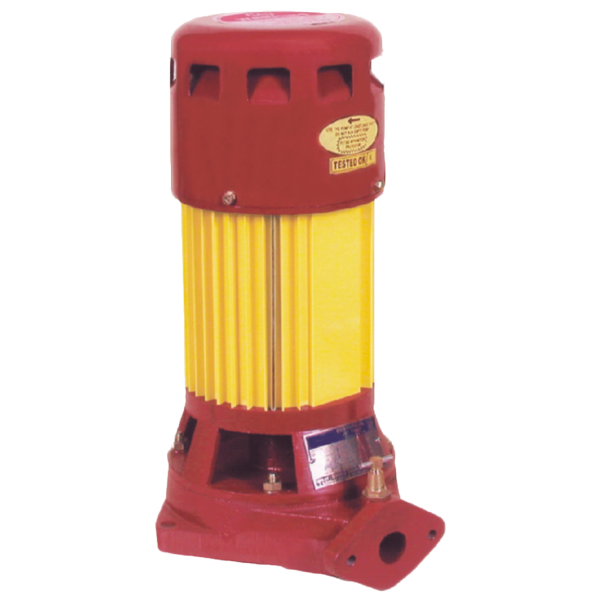

The S1032J 1 HP Centrifugal Deepwell Pump is a reliable water pumping solution designed for deepwell water supply applications. Powered by a 0.75 kW (1 HP) single-phase AC motor, this pump operates at approximately 2800 RPM and 50 Hz.
The pump features a capacitor start and run motor with TEFC/SPDP motor construction. Its jet assembly supports water lifting applications, while the pressure regulating valve helps maintain efficient pump operation at different pumping depths.
The pump is manufactured in accordance with the IS 12225 standard. Its performance characteristics make it suitable for domestic water supply, small farms, hotels, gardens, and small industrial applications.
Specification | Details |
|---|---|
Brand | As per actual manufacturer |
Model | S1032J |
Product Type | Centrifugal Deepwell Jet Pump |
Power | 1 HP |
Power in kW | 0.75 kW |
Voltage | 160–240 V AC |
Phase | Single Phase |
Frequency | 50 Hz |
Speed | 2800 RPM (approx.) |
Pipe Size | 32 × 25 × 25 mm |
Maximum Current | 6.5 Amps |
Motor Type | TEFC/SPDP |
Starting | Capacitor Start and Run |
Standard | IS 12225 |
Warranty | 12 Months |
Performance chart – S1032J
Total Head (Metres) | Discharge (LPH) |
|---|---|
10 m | 1,768 |
15 m | 1,710 |
20 m | 1,657 |
25 m | 1,638 |
30 m | 1,620 |
35 m | 1,370 |
40 m | 1,116 |
45 m | 846 |
50 m | 576 |
55 m | 468 |
60 m | 360 |
| Suction | 100 ft |
| Delivery | 60 ft |
Understanding the performance:
At 10 metres head, discharge is 1,768 litres per hour.
At 30 metres head, discharge is 1,620 litres per hour.
At 45 metres head, discharge is 846 litres per hour.
At 60 metres head, discharge is 360 litres per hour.
Standard accessories
The following accessories are included:
Pressure Gauge
Jet Assembly
Pressure Regulating Valve
Applications
Drinking water supply
