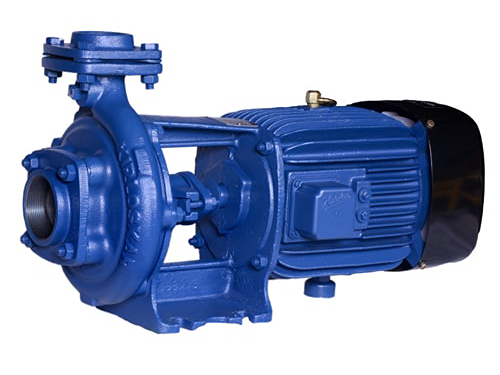

The Lubi LBI-18 5HP 3 Phase Centrifugal Monoblock Pump is designed to provide high-volume water transfer with reliable performance. It is suitable for irrigation, water distribution, industrial water circulation, and commercial pumping applications that require consistent flow.
The Lubi LBI-18 5HP 3 Phase Centrifugal Monoblock Pump is built to deliver efficient water movement in applications where a high flow rate is important. Powered by a 5 HP three-phase motor, it combines a compact monoblock design with a centrifugal pumping system to ensure smooth and dependable operation.
With a 100 × 100 mm pipe connection, this pump is capable of handling large quantities of clean water for agricultural irrigation, industrial water transfer, commercial water supply, and water circulation systems. Its sturdy construction supports continuous operation, while the balanced hydraulic design helps maintain stable performance across different operating conditions.
| Head (m) | Flow (LPM) |
|---|
| 8 | 1380 |
| 12 | 1220 |
| 14 | 840 |
| Specification | Details |
|---|
| Brand | Lubi |
| Model | LBI-18 |
| Pump Type | End Suction Centrifugal Monoblock Pump |
| Power | 5 HP |
| Phase | 3 Phase |
| Pipe Size | 100 × 100 mm |
| Frequency | 50 Hz |
| Speed | 2900 RPM |
| Motor Type | TEFC Induction Motor |
| Protection | IP55 |
| Insulation | Class F |
| Duty | S1 Continuous Duty |
